Medical Devices
The safest and most effective therapy.
The safest and most effective therapy using extracted
factors through gathered blood
This can be used in hair loss and skin regeneration.
PRP Thrombo Kit
PRP Thrombo Kit (10cc/ 20cc)
An instrument used to extract concentrated platelets from plasma after centrifugation of gathered blood.
- 1Easy blood separation
Easily separate Platelets, WBC, Plasma, etc. through a single procedure of
centrifugation - 2Accurate PRP extraction
Using subsidiary equipment (Push Man) and no needle, we can produce
optical concentration minimizing platelet destruction through an extraction
method which uses natural pressure.
platelet extraction (Approximately 1,500,000/㎕) - 3Prevent Contamination
The extraction procedure is progressed while the upper cap seals the system after blood has been injected, minimizing the contact time with air, preventing contamination

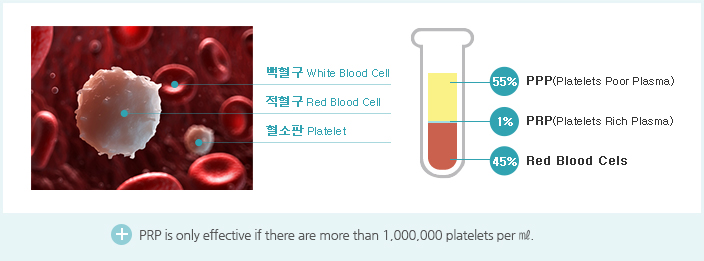

What is PRP
PRP (Platelet Rich Plasma)
PRP is the abbreviation for Platelet Rich Plasma. PRP has no danger of disease contagion or hypersensitive reaction because the blood of the patient is used. The number of clinically useable platelets are 1mill./㎕ or 4~7 times the number of normal platelets (200000/㎕). Similar to red blood cells, they do not have nucleus but shows very active metabolic activity. Especially, platelets produce a high number of growth factors and secrete them in the coagulation process.
How to use a PRP Kit
- 1Blood gathered after anticoagulant injection is injected to the Thrombo Kit.
10cc Kit : anticoagulant 1.5cc
20cc Kit : anticoagulant 3cc
※ The anticoagulant is injected to the syringe before blood-gathering.
- 2Centrifugation
10cc Kit : 3,200rpm/8min
20cc Kit : 3,200rpm/10min
※ Centrifugation should be progressed after the weight on each side has been adjusted to be the same.
- 3Accurate extraction of PRP from the separated blood using Push Man.
- 4Completion of PRP injection
Push Man
Push Man (MP-21C)
An instrument used to easily and accurately extract PRP(Platelets, Plasma, WBC, etc.) from blood which has progressed with centrifugation.
After centrifugation, fix the Kit to the main system and connect a single-use syringe to the Kit. Use the handles on the main system to easily and accurately extract Platelets, Plasma, WBC, etc. through up-and-down motions of the pushrod.
- 1Easy, convenient, and accurate extraction while viewing the Buffy Coat through the naked eye
- 2Use natural pressure to minimize platelet destruction and extract optimal Buffy Coat
Growth factors in Platelet
- PDGF : Platelet-derived growth factors
Promotes division of osteoblast cells, epithelial cells, stem cells
- TGF : Transforming growth factor
Promotes cell division, blood vessel formation promote promote stem cells to be divided
into osteoblast cells - VEGF : Vascular endothelial growth factor
Stimulates blood vessel growth
- GF : Epithelial growth factor
Promotes growth of epithelial cells
Air Man
Air Man (ma-21C)
An instrument which induces thermal denaturalization to PPP(Platelet Poor Plasma) to make Plasma Gel; includes both Heating and Cooling features (4℃~97℃)
- 1Use of air heating/cooling method
Produces high-concentration gel using an air heating/cooling method rather than the conventional WaterBath method.
- 2Can quickly reach the set temperature
Quick heating and cooling; reaching time to set temperature is 15 mins.
Max - 3Minimize Temperature Variation
Minimize temperature variation by adopting the Digital PID Control method
(Within ±1℃) - 4Possible to produce large quantities of Plasma Gel
Possible to use up to 4 1cc~3cc syringes; may produce large quantities of Plasma Gel in a single trial
What is PPP
PPP(Platelet Poor Plasma) is composed of approximately 90% water and Albumin, Globurin, Fibrinogen, and contains plasma proteins and etc. components.
PPP conveys nutrition to cells, collects bodily waste, and simultaneously controls the moisture level in the cell.
How to use Air man
- 1Blood gathered after anticoagulant injection is injected to the Thrombo Kit.
- 2Progress with centrifugation.
- 3Extract PPP using Push Man; subdivide the extracted PPP to 1cc syringes.
- 4Heat the subdivided PPP for 10 mins. at 91℃.
- 5After the heating procedure, cool for 5 mins. at 4℃.
- 6Plasma Gel complete.

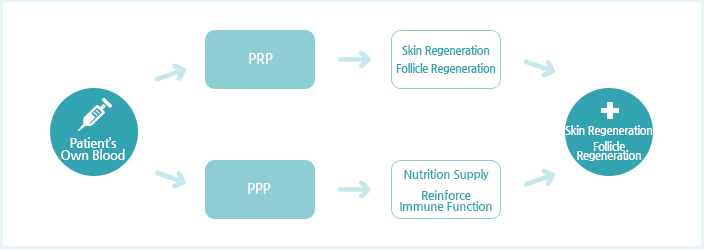

PRP Therapy
What is PRP Therapy
After separating and concentrating platelets which have rich growth factors in the patient’s own blood by more than 5 times, injections are made to areas with skin, pain, hair loss to restore damaged tissues using the growth factors of the platelet.
Effects of PRP Therapy
- When bodily tissues are damaged, platelets and plasma move to these tissues preferentially and start cohesion and healing actions.
- Platelets contain high levels of diverse growth factors which work to restore damaged tissues to normal tissues.
- PRP fundamentally treats damaged tissues by promoting cell proliferation, collagen formation, hyaluronic acid production, epithelial cell growth, blood vessel formation, etc.
- Patient’s own blood, PRP, PPP, skin regeneration, hair follicle regeneration, nutrition supplement, immunization reinforcement
Advances in PRP Therapy
- Skin Regeneration
Wrinkle Improvement, Scar Improvement, Skin Elasticity, Fat Transplantation
- Hair Loss
Hair Loss in Men, Hair Loss in Women, Alopecia Aerata, Telogen Effluvium, etc.
- Pain
Stimulate Blood Vessel Growth
Advantages of PRP Therapy
- 1PRP Therapy has no side effects.
PRP Therapy has no infection or allergic reaction because it uses the patient’s own blood.
- 2PRP Therapy is a fundamental treatment method.
PRP Therapy is the most fundamental treatment method which restores damaged tissues using body growth factors through natural treatment.
- 3PRP Therapy is effective and quick.
PRP Therapy is highly efficient and quicker than conventional treatment methods because concentrated growth factors are directly injected into the designated area.
- 4Return to daily life after treatment is quick.
